Bionime GM550
GM550 Meter:
The GM550 is a high-end model with many advanced functions. The feature of auto coding makes the meter easy to use. Backlight design enables people to read the test result even in the dark. With its accuracy & precision, the GM550 has attracted a lot of attentions from the professional users.
- Auto coding (Patent Pending)
- Backlight
- Nobel Metal Electrode Strip
- High Accuracy & Precision
- Large display – easy to read
- Tiny blood sample size
- Accurate measurement in few seconds

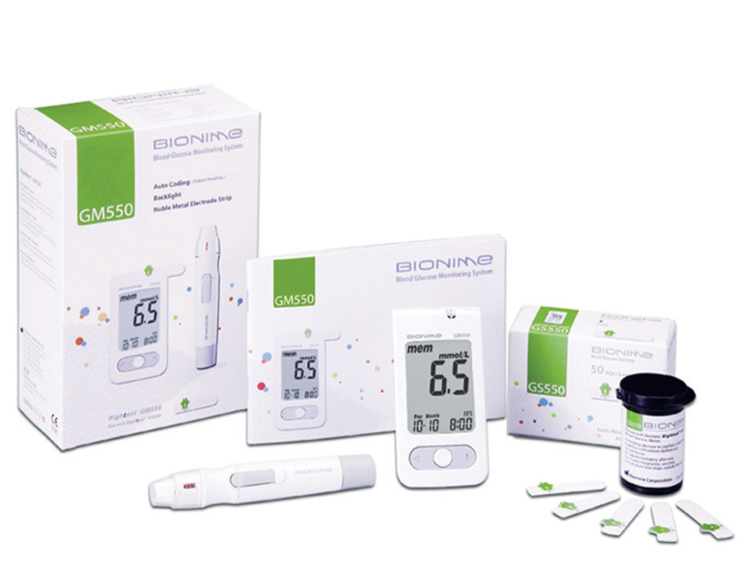

GM550 Package Content:
- GM550 meter
- 10pcs of test Strips
- Control Solution
- GD500 Lancing Device
- Getting Starter Guide
- Test Strip Insert
- User Manual
- 10pcs of Lancet2
- 2 CR2032 Batteries
- Carrying Case
- Log Book
- Emergency Card
GM550 Specifications:
- Blood sample volume: 0.75 μL
- Detection time: 5 seconds
- Memory: 500 readings
- Test Range: 10-600 mg/dl (0.6-33.3mmol/l)
- Size: 90.6 x 46 x 16.5 mm
- Weight: 53.0+5g (with batteries)
About Bionime:
Established in April 2003, BIONIME is specialized in the business of biotechnology and medical testing. It integrates the top-tier expertise in medical science, chemistry, electronics and mechanism to commercialize the patented technology of Blood Glucose Monitoring System. BIONIME operates 3 subsidiaries in Europe, America and Asia. The products have been highly recognized by outstanding clinical tests and well-known journals. With the support from our customers, we are confi- dent to establish the global competitive leadership.
Meter
Autocoding
The test strip performs the coding.

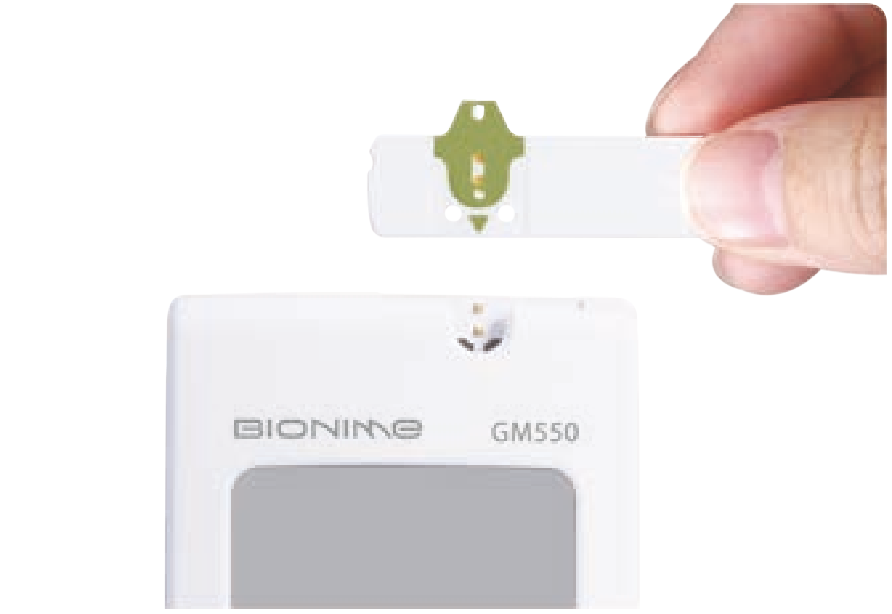

Autostart
Switches on when the test strip clicks into position.

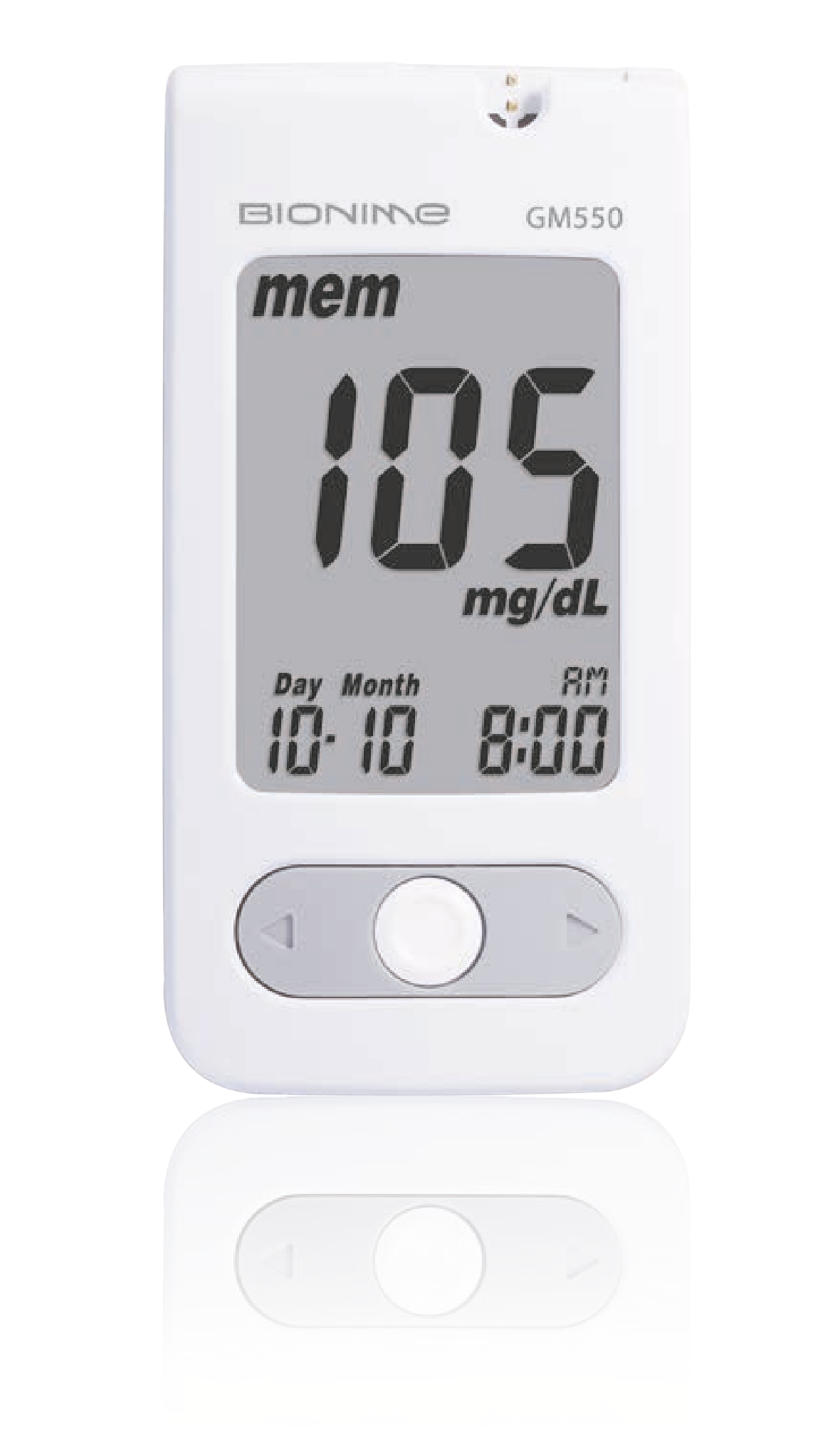

Extra-large, uminated display
Easy to read at any time of day or night.

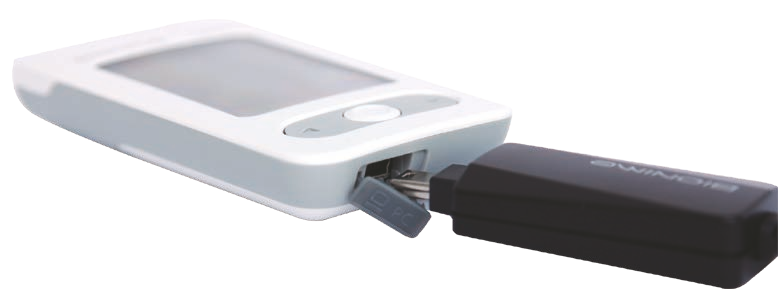

Simple strip removal
Simple and dean without blood contact.

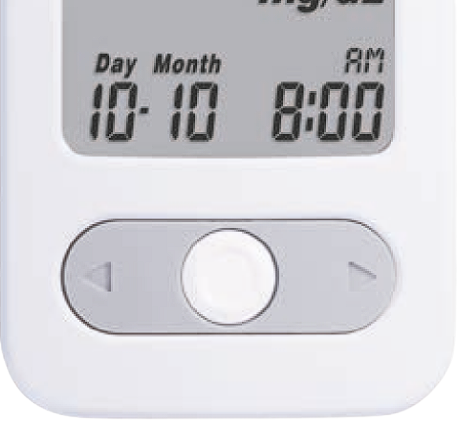

3-button controll
Extremely simple navigation with just 3 buttons.
Extra-large, uminated display
Easy to read at any time of day or night.

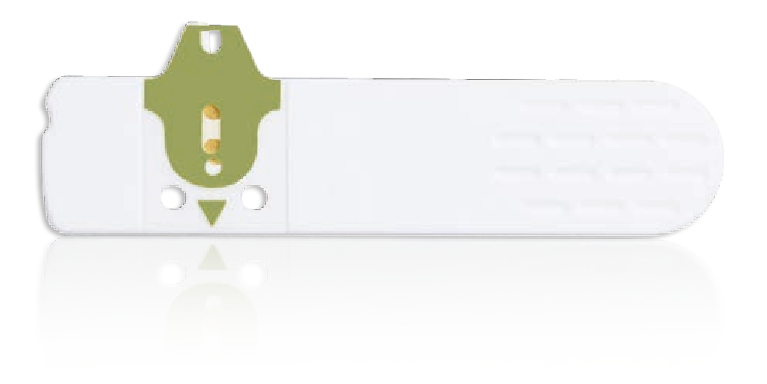

Strip
Good combination
The protruding blood application site and the two-colour test strip design allow the blood sample to be applied easily and reliably.

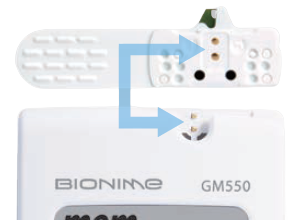

Precise transmission
Short signal paths for improved test results thanks to gold electrodes.
Practical application
Safe and simple blood absorption with a stable test strip.

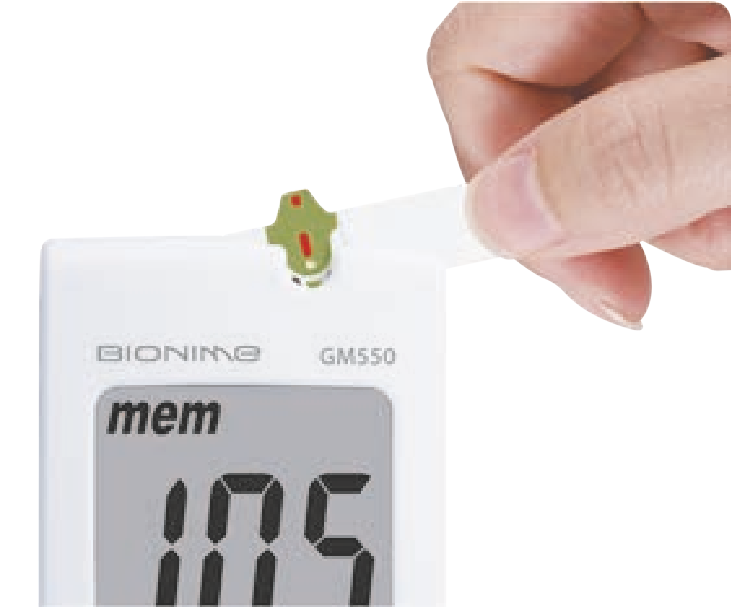

Safe strip removal
Safe and clean without blood contact.

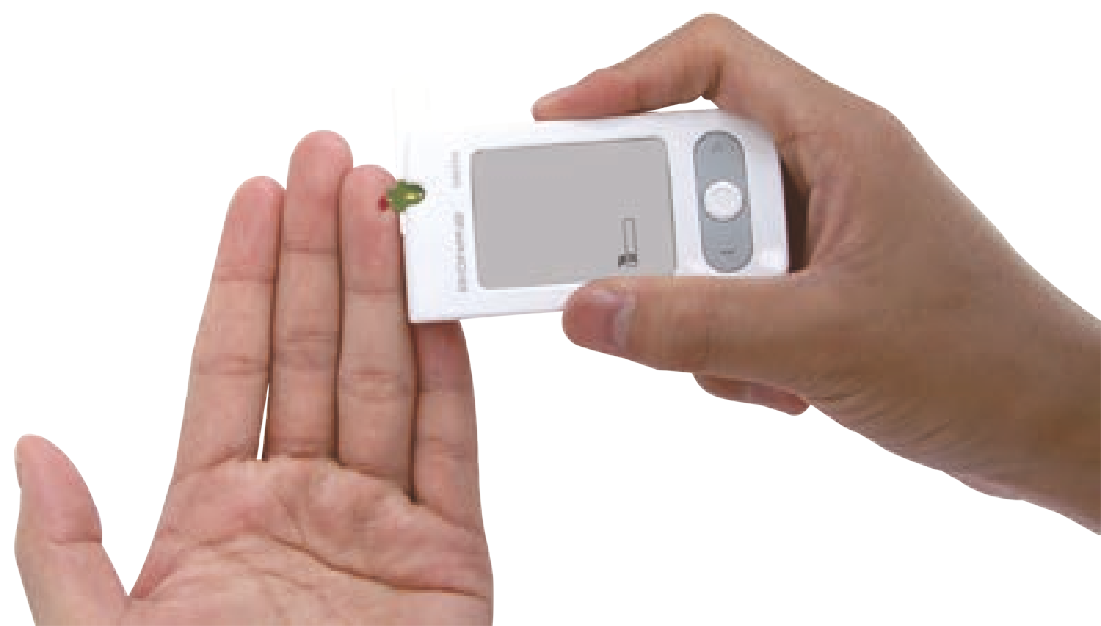

Extremely rapid blood absorption
Extra-absorbent test strip for low blood sample size (0.75 ul). Automatic error message if the blood sample is too small.

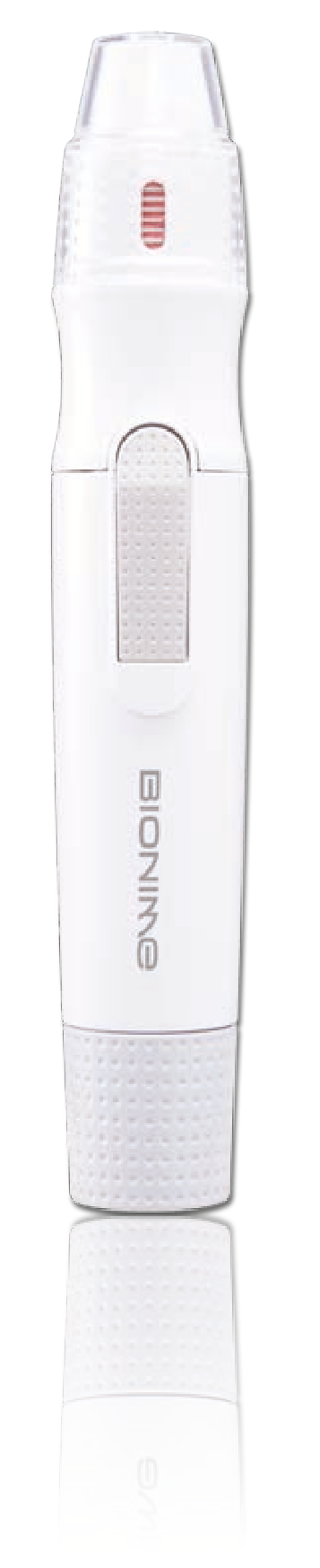

Lancing Device

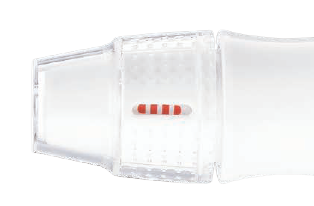

Variable puncture depths
Seven puncture depths for individual setting and effective lancing.
Special protection against injury
To prevent puncture wounds caused by inadvertently releasing the device when changing the lancet.

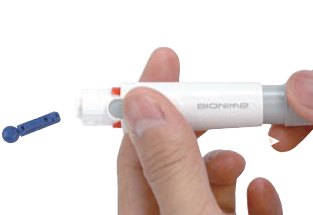

Hygienic ejection of the lancet
Without touching it.
Alternate test sites
The AST device allows for the collection of blood samples at alternate test sites.

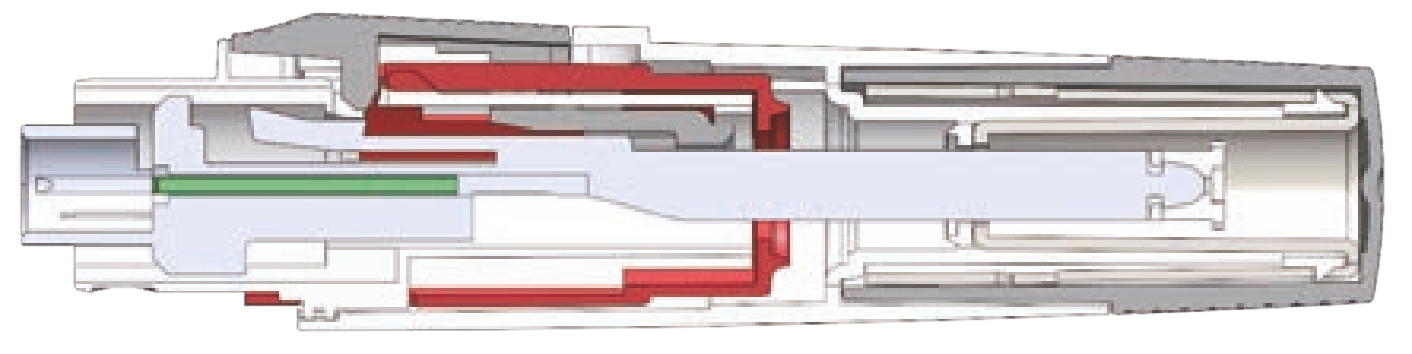

Extremely low-vibration
Internal, cross-sectional view of the lancing device with vibration-reducing blades.
